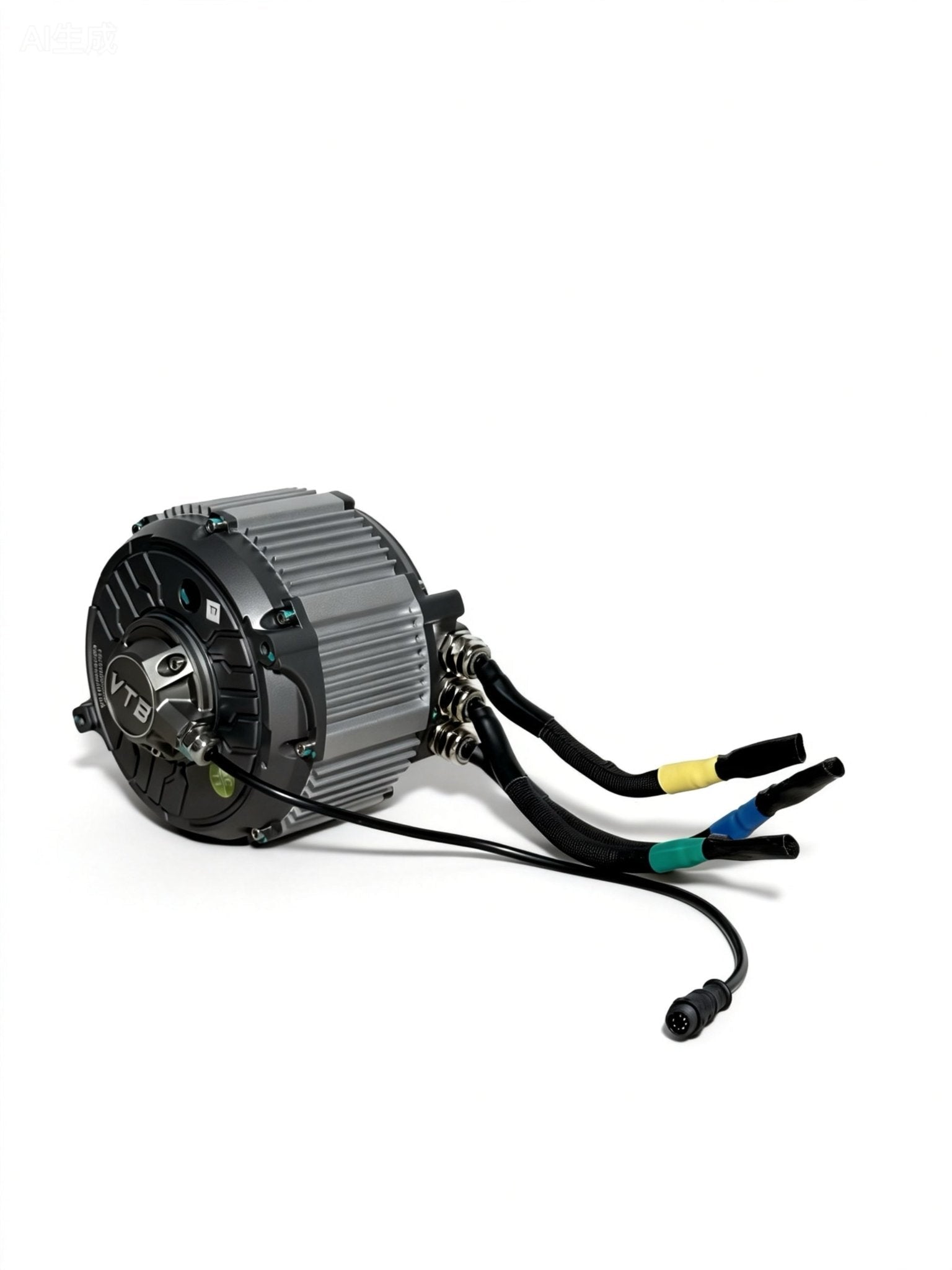

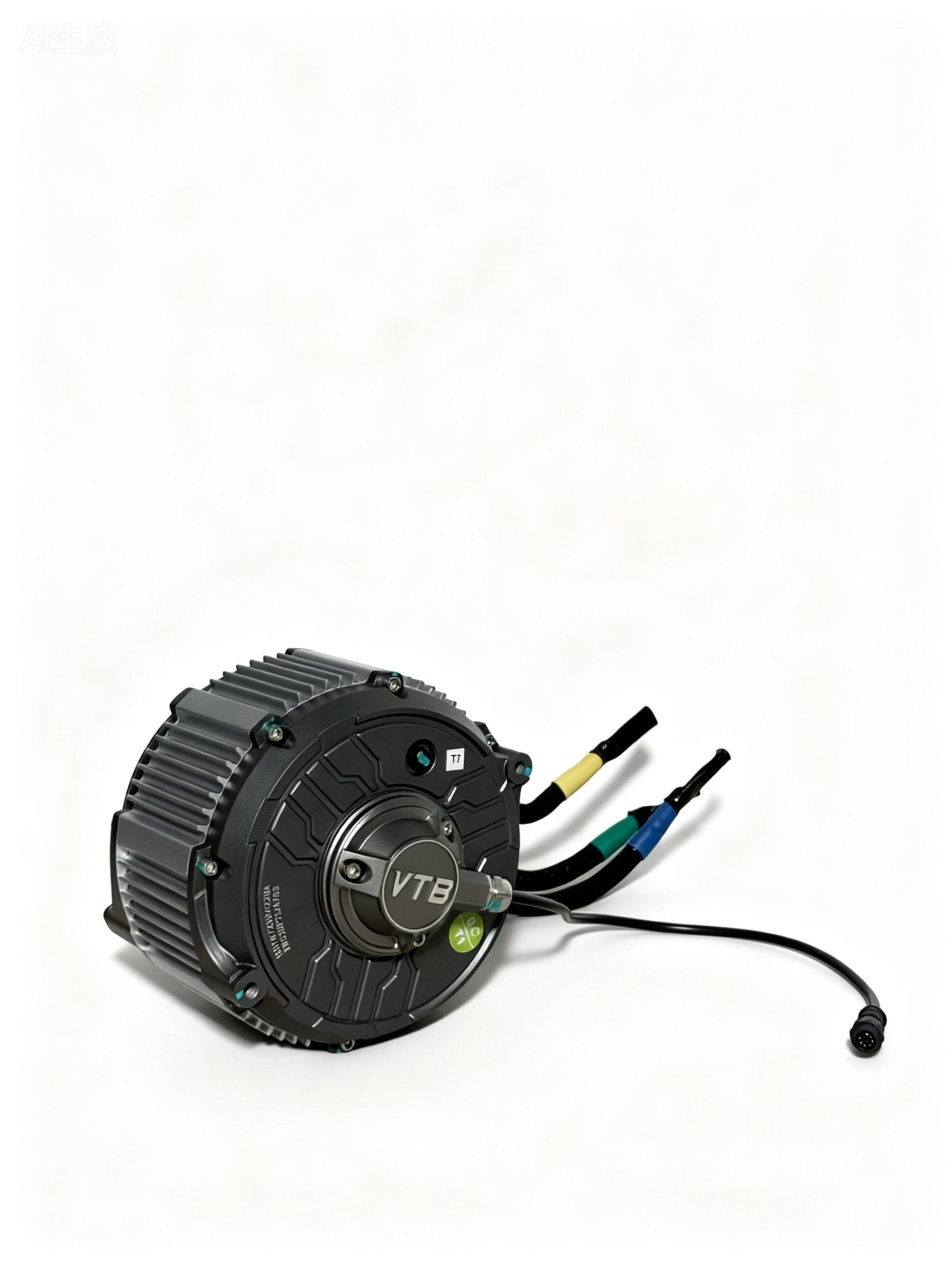

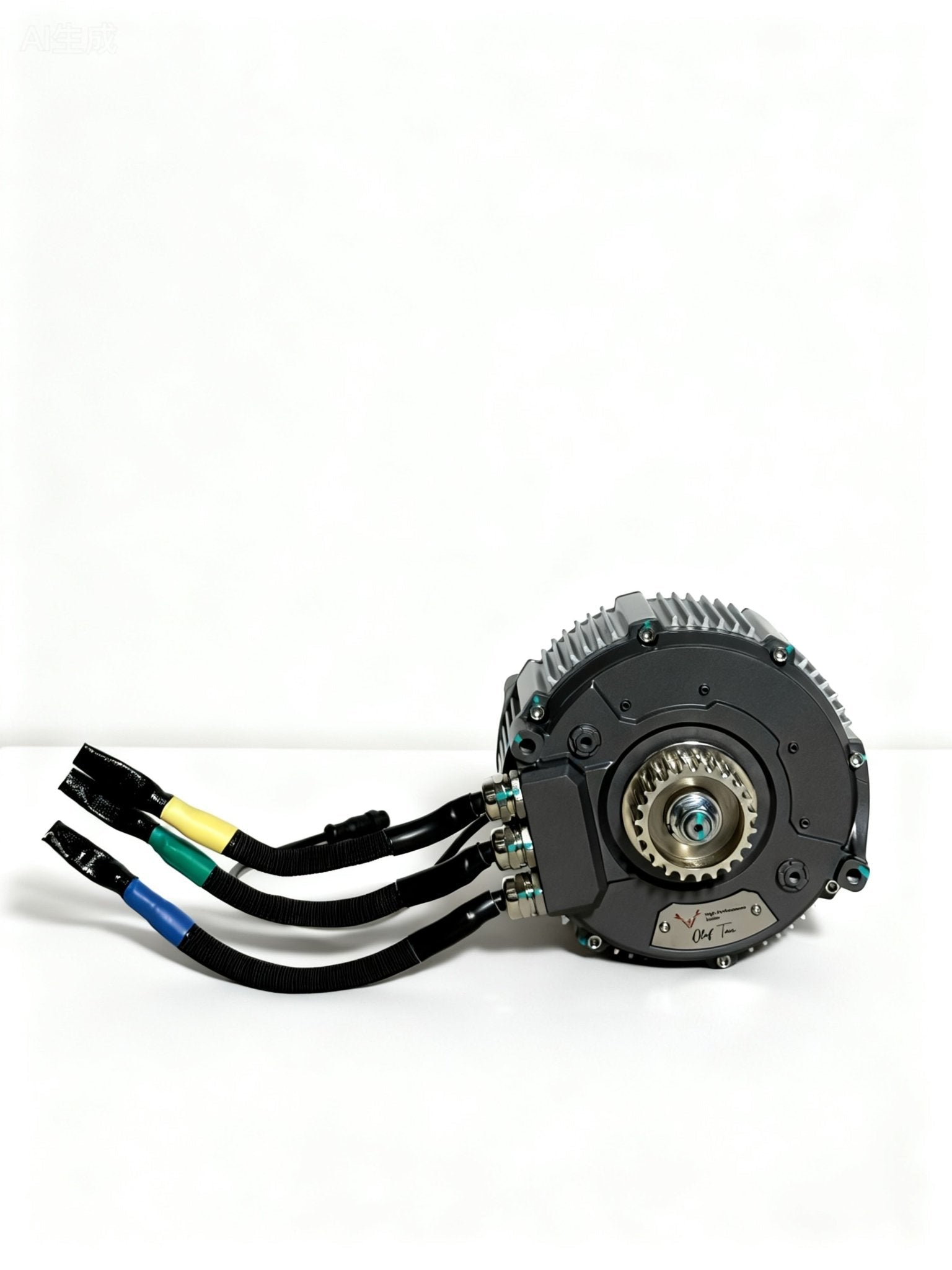

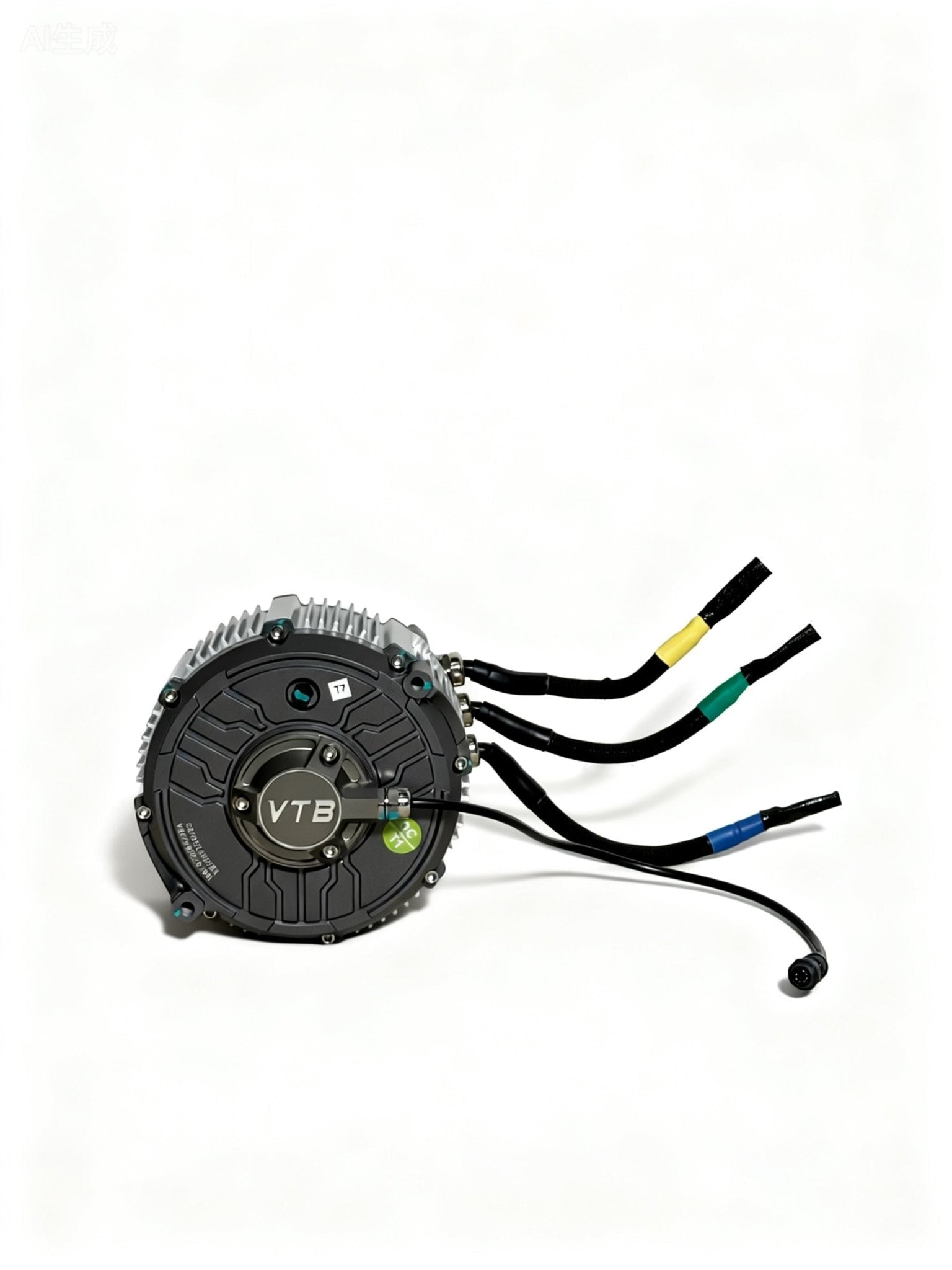

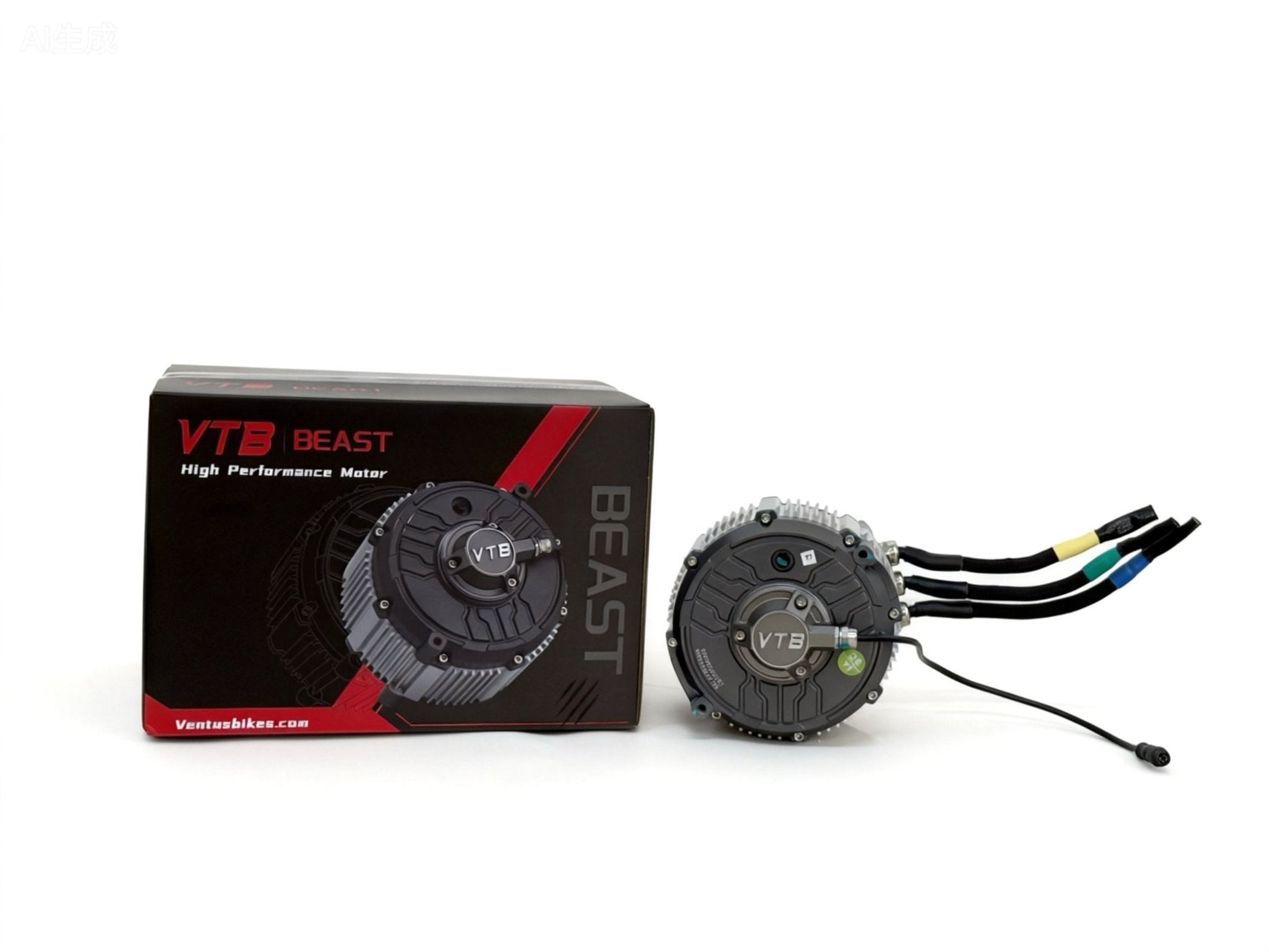

More power, more confidence — the Ventus 28 kW Light Emoto Motor is built to push your build further. Fits: Ventus One+.
Description VTB Beast motor is designed to increase the performance of light emotos. Paired with a VTB V9600 controller and a high-output battery, it turns a light emoto into a 28 kW beast. Fitment: Surron Light Bee Talaria XXX Eride Pro SS, 2.0, & 3.0 79 Bike Falcon M, Pro, & GT. Rerode R1, & R1+ Max Torque: 62N.m Max Stable Rotor RPM: 9500 RPM Peak Power: 28kW Max Efficiency: ≥95% Working Voltage: 48-100V KV Value: 75KV Motor Temperature 130 deg C start limiting 150 deg C power cut Max Phase Current: 850A Number of Pole Pairs: 5 Phase Wire Terminal: SC35-6 Waterproof Rating: IP67 Air Gap Leading: 0.5mm rotor air gap empowers its torque to 62N.m Sensing Method: ABZ+PWM encoder for 1024 pulses with 240Hz output frequency Temperature Sensor NTC: 10k thermistors Shaft High-strength: 40CrMoTi Steel Alloy|Rotor IPM (internal permanent magnet) rotor, the most used motor type in electric vehicles, enhances power density Bearings: Top standard sealed bearings with great shock absorption effects and excellent durability Lamination: It uses stator laminations with high magnetic force, restricting eddy-current loss Stator Winding: A leading technique VPI (Vacuum Pressure Impregnation) is applied to stator windings to insulate and protect them Sensor Terminal: VTB beast motor has a Nylon M12 circular connection for the V9600 controller and 8-pin square sensor terminals to provide a higher waterproof level Specifications Stator Size: 130*180mm Weight: 10.9 kg Color: Iron Gray Further Description Encoder Connector The VTB beast motor is designed with circular connectors through IMD (In-mold Decoration) technique for better usage with other VTB products. It provides a high waterproof level at IP67 rating. We also keep the square-shape connectors if you prefer to get a motor separately. It is more versatile and works with your controller. However, it bears higher risks for water leaking in. The PVC wire is not with full coverage so it can create a pathway for water to enter the motor. Sensing Method There are typically two types of sensors: Hall sensors and encoders. Hall sensors have strong compatibility which is used very commonly, but it underperforms in speed feedback and throttle sensitivity. Especially when a vehicle is passing through obstacles with more pushes or when tires lose traction and try to reduce speed and torque, Hall sensors have slower response compared to encoders. Encoder is the premium option for riders who do wheelies and care about control and level of precision. We have decided on encoder for VTB motors.
